1926 Star M
Special features
- Hayes-Hunt body
- Continental four cylinder engine
Models and prices
| Body style | Price |
|---|---|

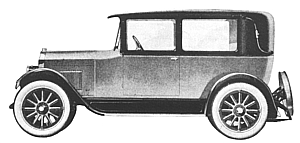

| Coach | $695.001 |
| Coupster | $610.001 |
| Roadster | $525.001 |
| Sedan | $795.001 |

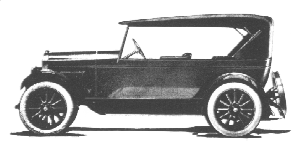

| Touring | $525.001 |
1 1926 prices, US dollars, f.o.b. Lansing
Serial number range
- C-350000 to C-379999
- E-350000 to E-379999
- L-350000 to L-379999
- T-350000 to T-379999
Specifications
| Engine | Four-cylinder, L-head type, detachable head; Nelson Bohnalite pistons with invar steel struts; 3-3/8" bore by 4-1/4" stroke; piston displacement, 152 cubic inches; 30 brake horsepower. |
|---|---|
| Cylinders | Cast in block with upper half of crankcase; detachable head. |
| Valves | 1-1/2" diameter; 5/16" lift. |
| Crankshaft bearings | Front, 1-1/2" by 1-25/32"; center, 1-1/2" by 1-9/16"; rear, 1-1/2" by 2-3/4". |
| Camshaft bearings | Front, 1-3/4" by 1-3/8"; center, 1-5/8" by 1"; rear, 1-1/2" by 1-33/64". |
| Engine lubrication | Force feed to all main, connecting-rod and camshaft bearings. |
| Cooling system | Honeycomb type radiator; capacity, 8 quarts; 16" fan, 4 blades; pump. |
| Gasoline supply | Capacity of tank, 11-1/2 gallons; placed at rear. Vacuum feed. |
| Carburetor | One-inch, plain tube, air and fuel adjustment. Exhaust and intake manifold with hot spot, mounted on left side of engine. |
| Clutch | Single-plate, dry-disc, enclosed in flywheel; separately removable. |
| Transmission | Standard, selective sliding-gear type; three speeds forward and one reverse. |
| Front axle | Standard drop-forged "I" beam section with reverse Elliott type steering mechanism. Tapered roller wheel bearings. |
| Rear axle | Semi-floating, simple design, with spiral-bevel ring gear and pinion. |
| Steering gear | Semi-irreversible, worm-and-gear type. Ball thrust bearings. 16" wheel. |
| Brakes | External contracting, internal expanding; 11" brake drum. Easy adjustment. |
| Chassis lubrication | Alemite pressure system. |
| Springs | Semi-elliptic; front, 35-7/8"; rear, 53-3/4". |
| Wheelbase | 103 inches. |
| Controls | Center control; accelerator pedal. Spark and throttle levers on steering column. Speedometer, ammeter, oil gauge, choke, ignition and lighting switch on instrument board. |
| Starting, lighting, ignition | Generator, starting motor, igniter, coil, motor-driven horn. |
| Standard equipment | – |
Engine views

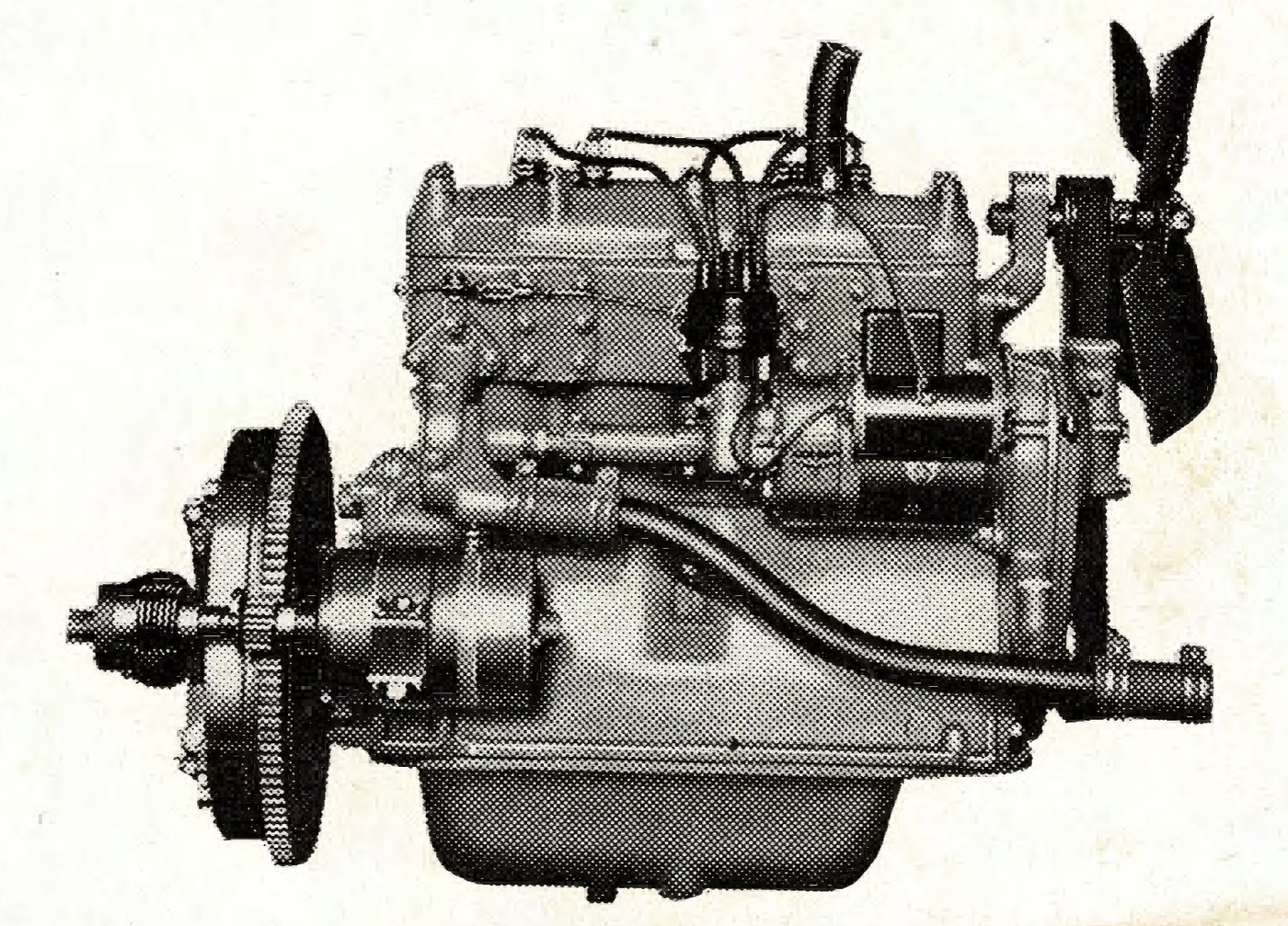

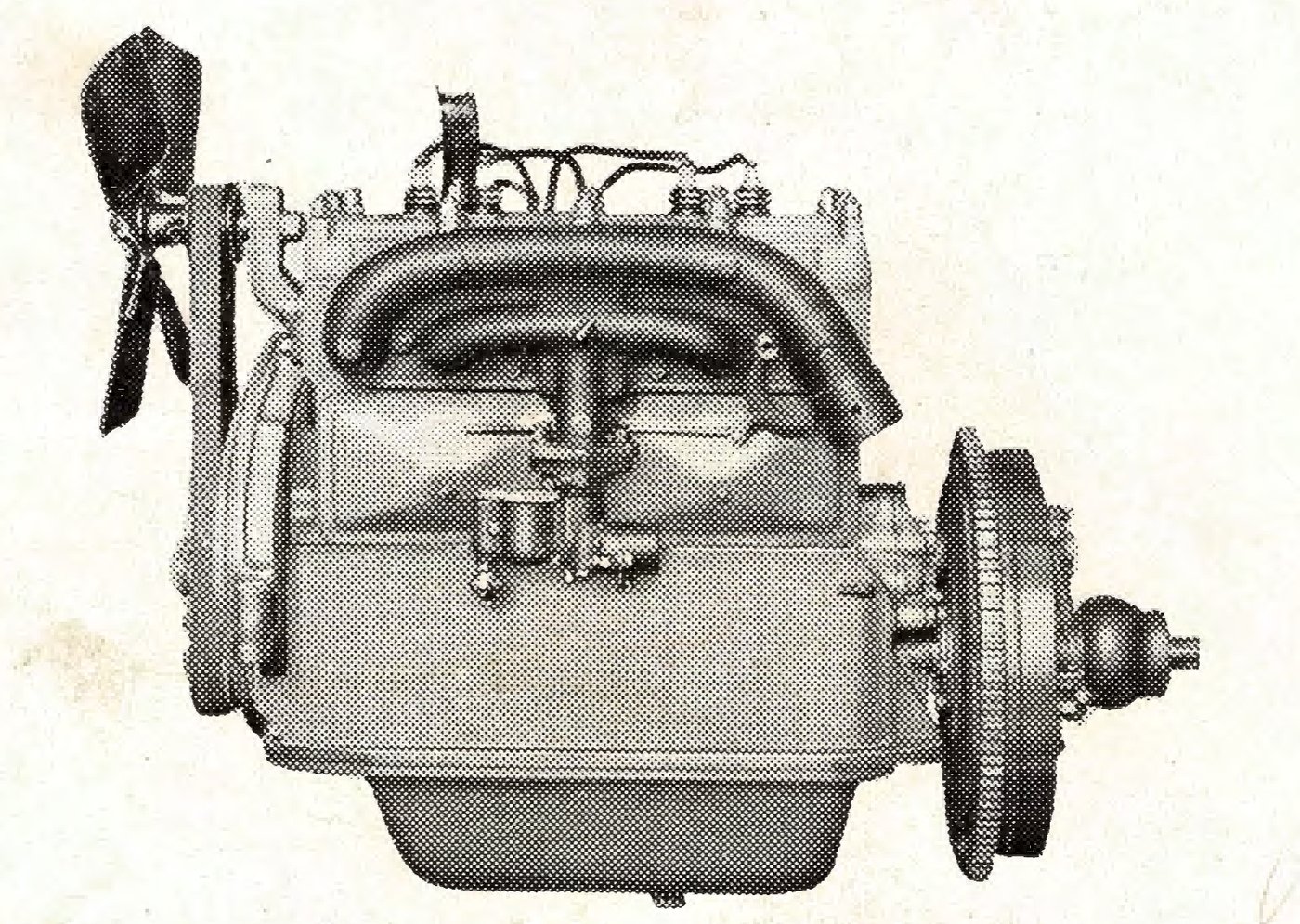

The Improved Star Four motor, from page F-14 of the October 1926 Star catalog: “This 30-brake horsepower motor has full force feed lubrication to all main, camshaft, and connecting rod bearings, honed cylinders, silent chain front end drive and other improvements that make it the highest quality, most powerful motor of any low-priced four-cylinder car.”
References
- [DFR-DS] V15#2, V17#2
- Star catalog, October 1926, p. F-14
