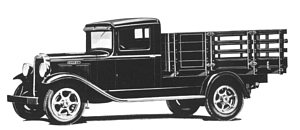

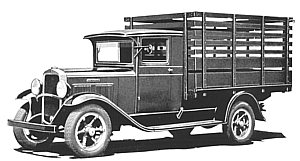

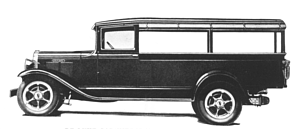

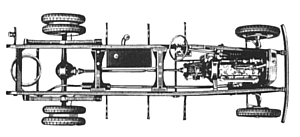

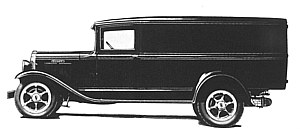

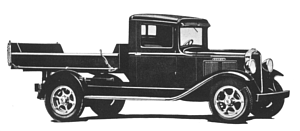

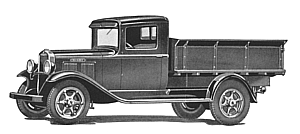

| Engine | 4-cylinder, mountings cushioned in rubber, "L" head. Bore 3-7/8", stroke 4-1/4", 24.03 horsepower, N.A.C.C. rating, 49 brake horsepower at 2,800 r.p.m. PYRODYNE non-detonating cylinder head. ISOMETRIC aluminum alloy invar strut pistons. Camshaft driven by silent chain. |
|---|
| Engine lubrication | Force feed system; oil filter, gear type pump forces oil to all crankshaft and camshaft bearings, and timing chain; oil spray for wrist pins, cylinder walls and valve mechanism. |
|---|
| Cooling system | Centrifugal water pump; thermostat control of temperature; four blade fan driven by V belt from crankshaft; water capacity of cylinder jacket and radiator 3 gallons. |
|---|
| Fuel supply | 12 gallon fuel tank; diaphragm pump, fuel feed; 1-1/4" carburetor equipped with accelerating device and economizer. |
|---|
| Clutch | 10 inch single dry disc. |
|---|
| Transmission | 4-Forward-Speed; roller bearing countershaft; power take-off opening on both right and left sides; Gear ratios: First speed, 6.417:1; Second speed: 3.86:1; Third speed: 1.797:1; Fourth speed: 1:1. |
|---|
| Front axle | Reverse-Elliot type. Drop-forged, heat-treated I-beam. |
|---|
| Rear axle | Semi-floating; spiral bevel driven; straddle mounted pinion; ratio 5.375:1 or 6.625:1 optional. |
|---|
| Final gear ratios | Rear axle ratio 5.375:1- 1st speed: 34.49 to 1; 2nd speed: 20.78 to 1; 3rd speed 9.66 to 1; 4th speed 5.375 to 1. Rear axle ratio 6.625:1 – 1st speed: 42.5 to 1; 2nd speed: 25.57 to 1; 3rd speed: 11.9 to 1; 4th speed: 6.625 to 1. |
|---|
| Brakes | "Steeldraulic" four-wheel brakes, 14" drum; hand brake operates on propellar shaft drum. |
|---|
| Chassis lubrication | Pressure Gun |
|---|
| Springs | Front – Overslung, semi-elliptic; length 36-3/4; width 2"; self-adjusting spring shackles. Rear – Over-slung semi-elliptic; length 50"; width 2-1/2"; heavy forged spring shackles. (Auxiliary spring equipment available.) |
|---|
| Wheels | Hollow steel spoke type, latest approved design; special provision for dual tires. |
|---|
| Tires | Front, 6.00:20 6-ply truck balloons. Rear, 32×6, 8-ply, high pressure. (Note: 32×6 spare may be used on front wheels in emergency.) |
|---|
| Wheelbase | 154 inch wheelbase obtainable. |
|---|
| Electrical system | 6-volt; belt driven generator; manual and semi automatic spark control. |
|---|
| Equipment | Front bumper, head, tail and stop lights, front and rear fenders; full running board; spare rim; tool kit, grease gun and jack, co-incidental ignition switch and coil lock; ammeter; electric gasoline gauge; electric engine temperature indicator; oil pressure gauge and speedometer. |
|---|
| General dimensions and length | Overall Length – 189 inches. Back of seat to center of axle – 53-3/4". Back of seat to end of frame – 91-1/4 inches. Maximum wheel house width – 48-1/4 inches. Width of frame – 34 inches. Tread – standard. Chassis weight – 2,900 pounds. Body weight allowance – 1,200 pounds. Payload – 3,000 pounds. Gross allowable weight – 7,100 pounds. |
|---|
